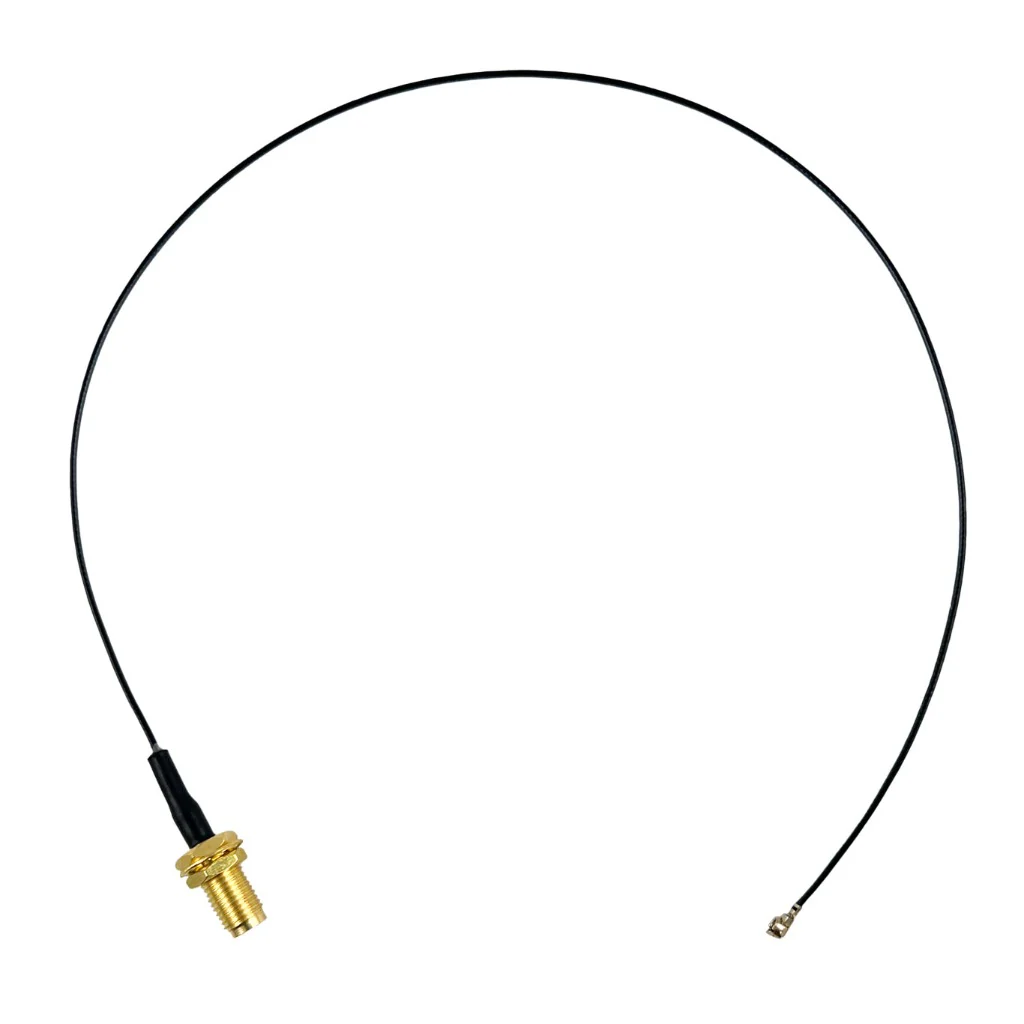

The Waveform U.FL to SMA-Female Pigtail adapter uses a high-quality 1.13mm flexible cable that is both durable and strong, while providing minimal insertion loss.

This Waveform U.FL to SMA-Female Pigtail adapter replaces our earlier SMA-Female to U.FL Pigtail Adapter. It's thinner 1.13 cable and improved U.FL connector allows for easier overall installation experience.

Specs

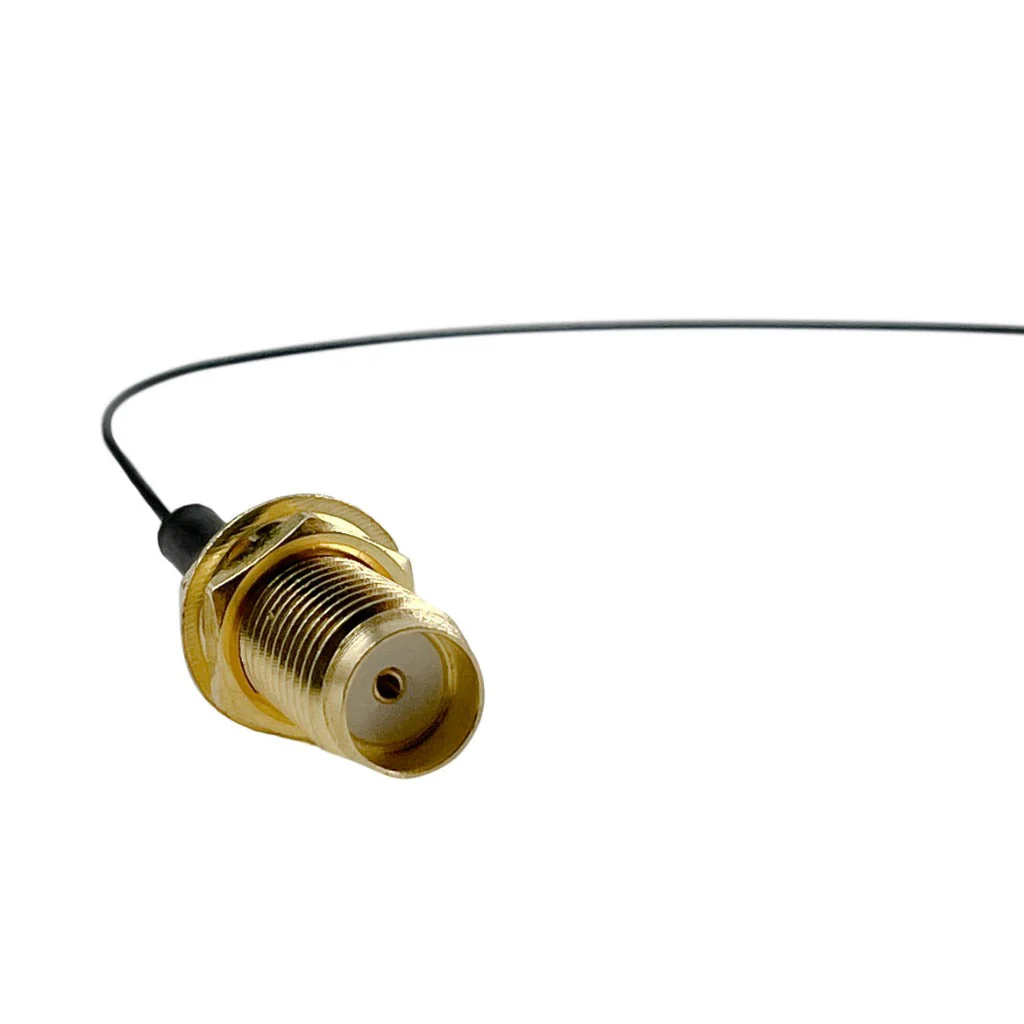

• SMA-Female to U.FL-Female connectors
• 30 cm (12 inch) cable with 1.13mm diameter cable type
• 50 Ohm impedance
• Gold-plated brass connectors, PTFE cable dielectric, and an black FEP cable jacket.
• VSWR rated below 1.25 for use at frequencies of up to 6 GHz.

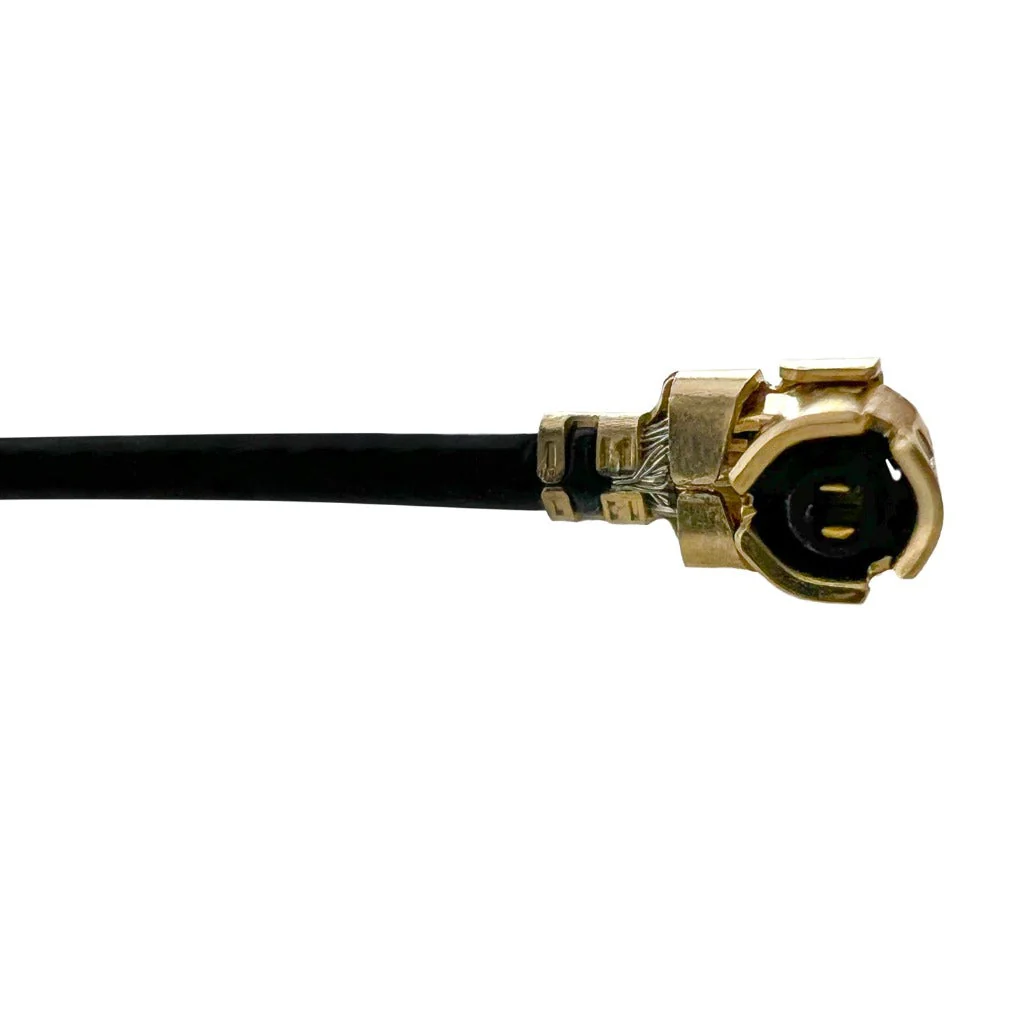

U.FL is also referred to as IPEX MHF1, IPX, AMC, or UMCC.
